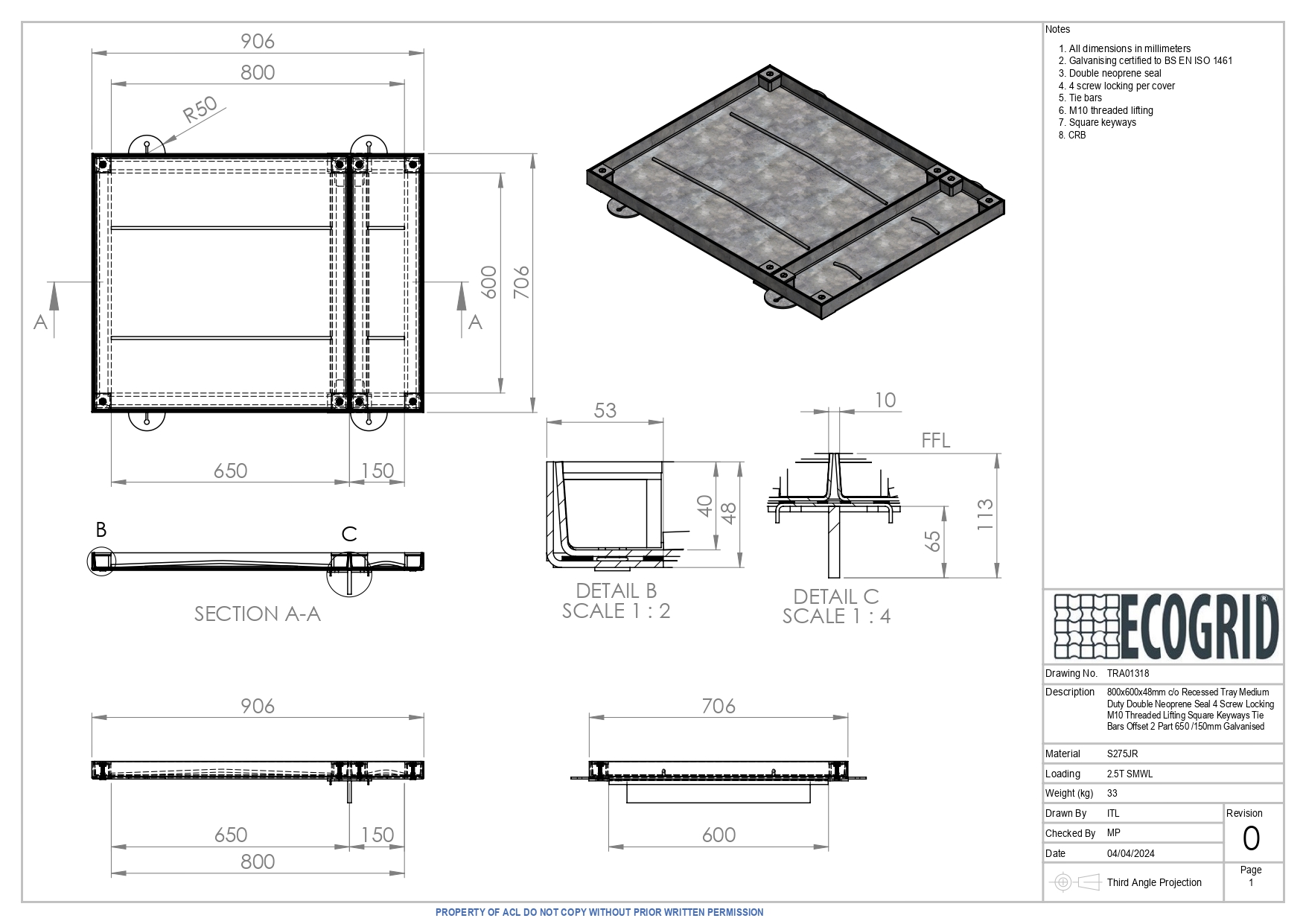

We make a full range of bespoke recessed manhole covers from 50mm deep to 200mm+ deep when needed, in all loading classes.
From simple tile-sized manhole covers to full multi-tray recessed covers for large chamber access — we can manufacture anything your project needs.
All of the below covers are available in galvanised steel and can be upgraded to stainless steel if needed for corrosion resistance, swimming pool use or for high-end jobs.

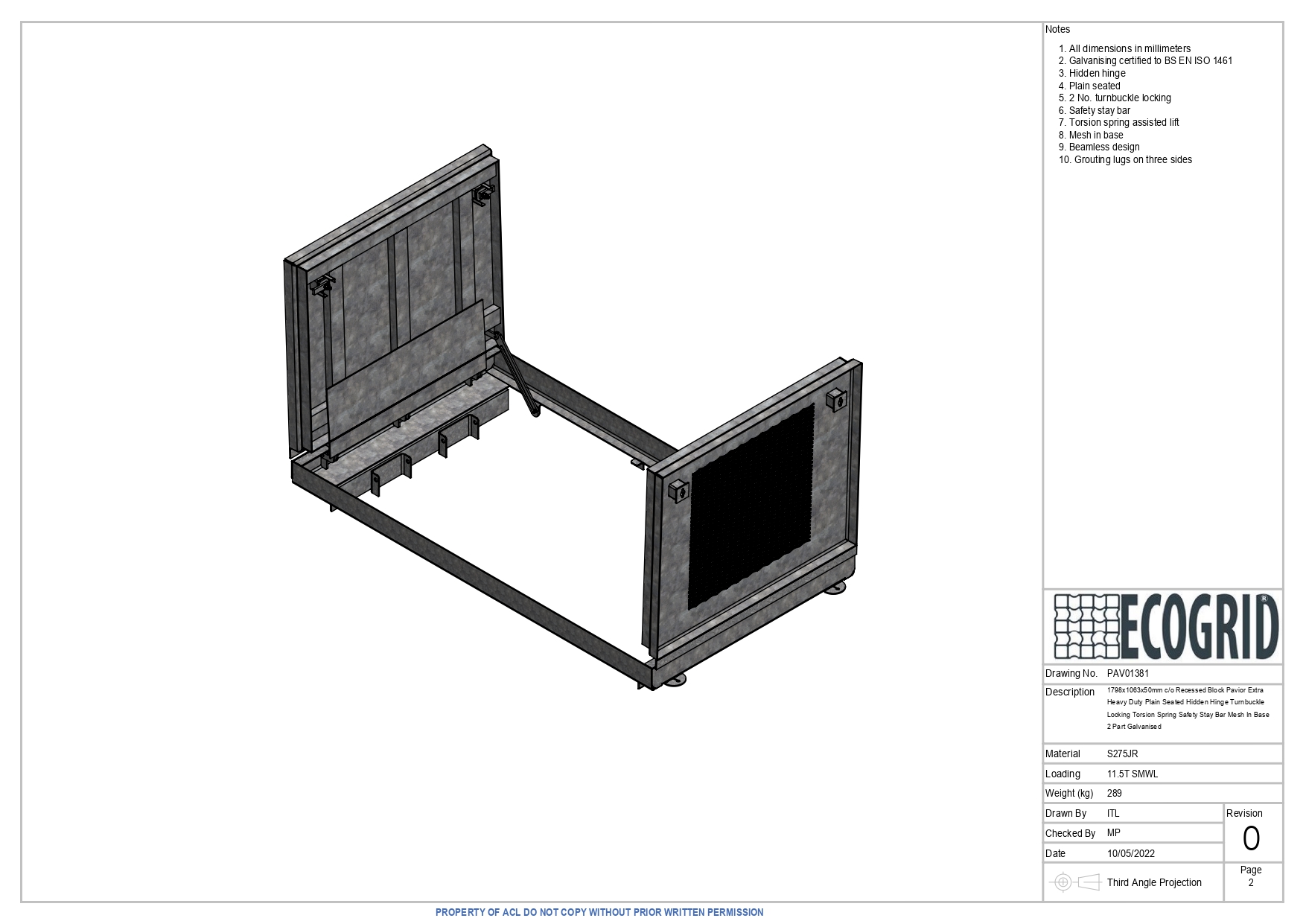

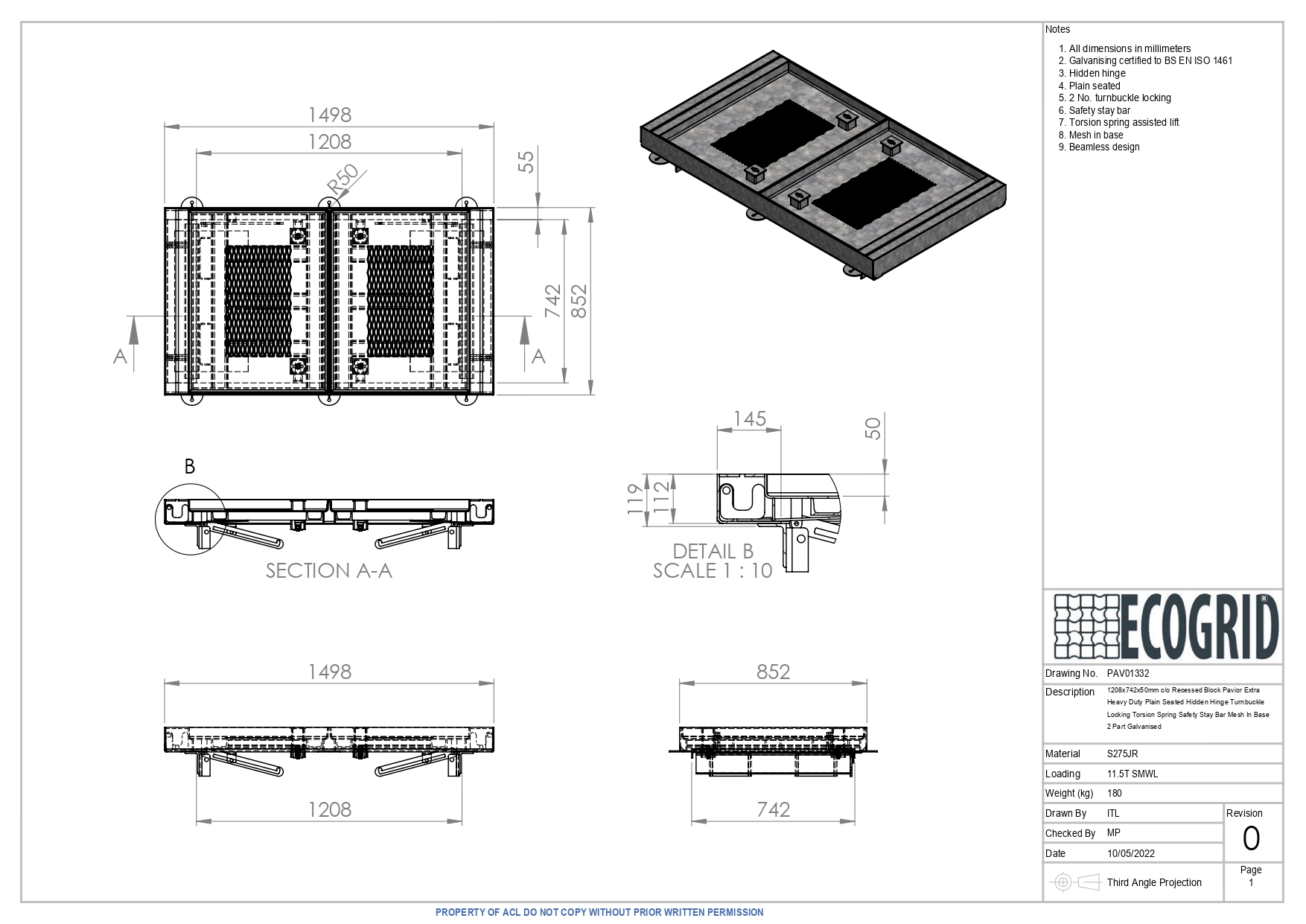

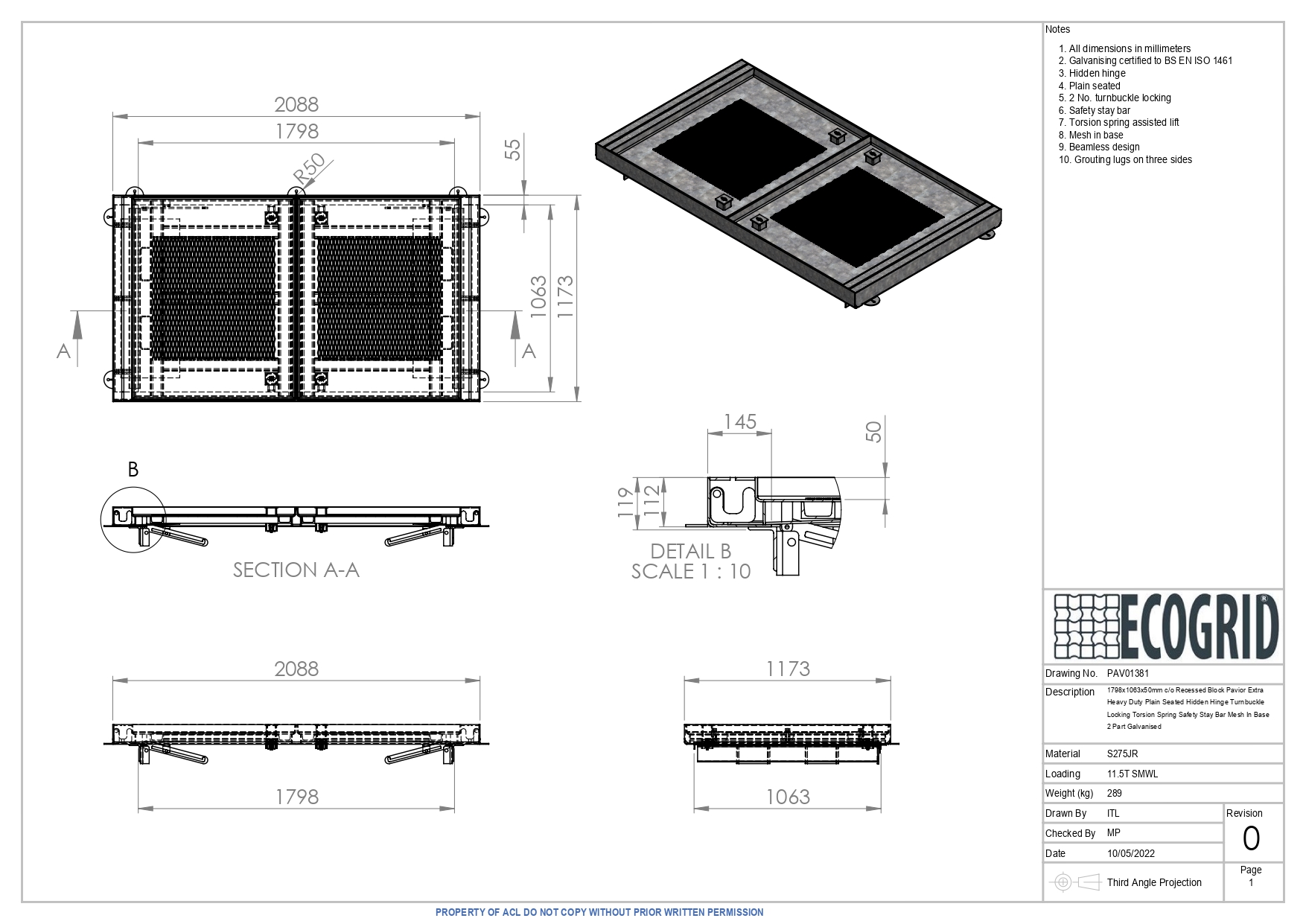

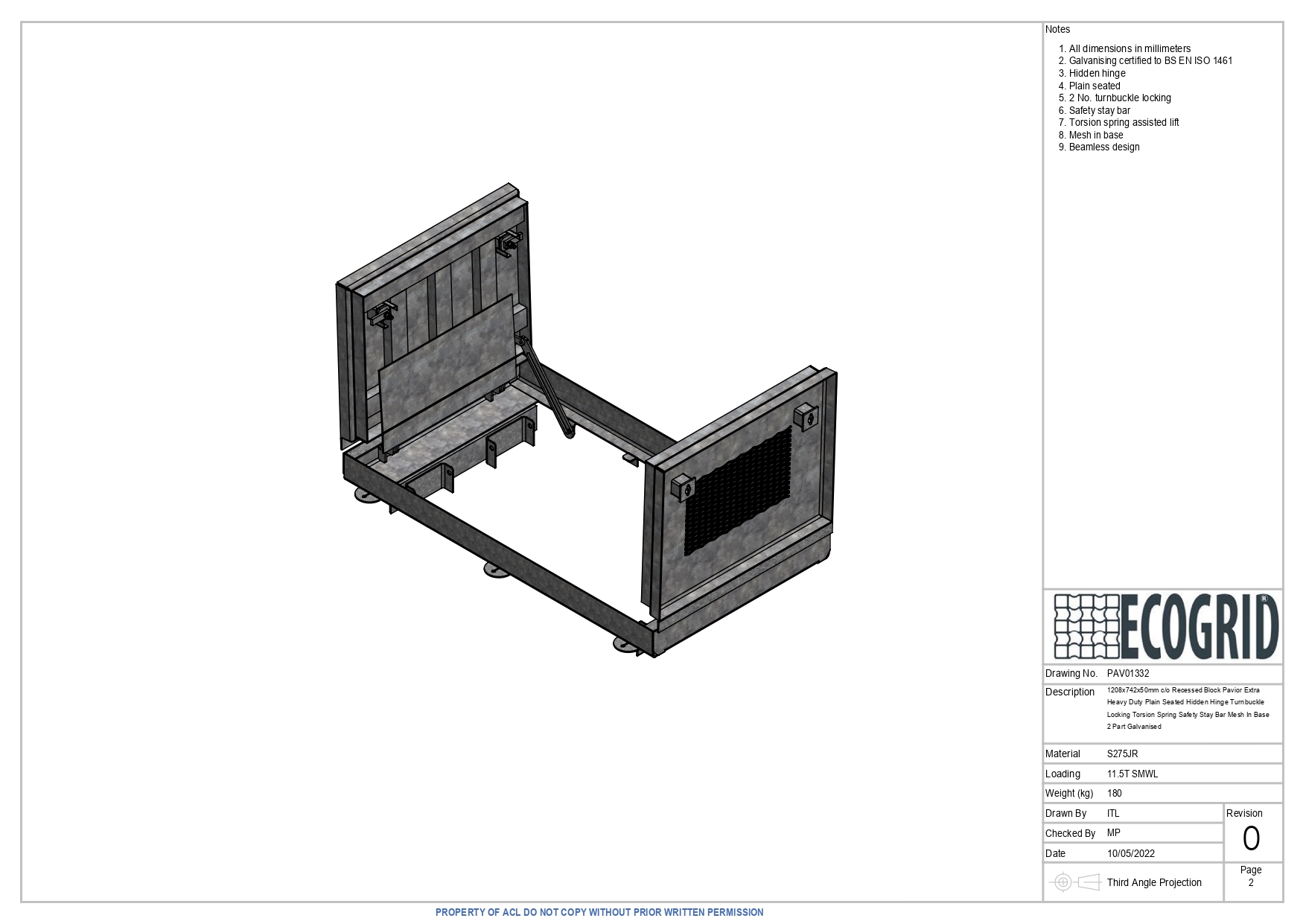

For times when the cover is too large or health and safety dictates, we can offer lift assisted manhole covers that feature a hinge and assisted lift strut to make lifting of the cover effortless and safe.
These covers come in all bespoke sizes from smaller 450mm chamber sizes right up to 1m+ bigger covers.
If the size is extra-large we also offer multi tray options where there are several manhole trays in one larger frame.

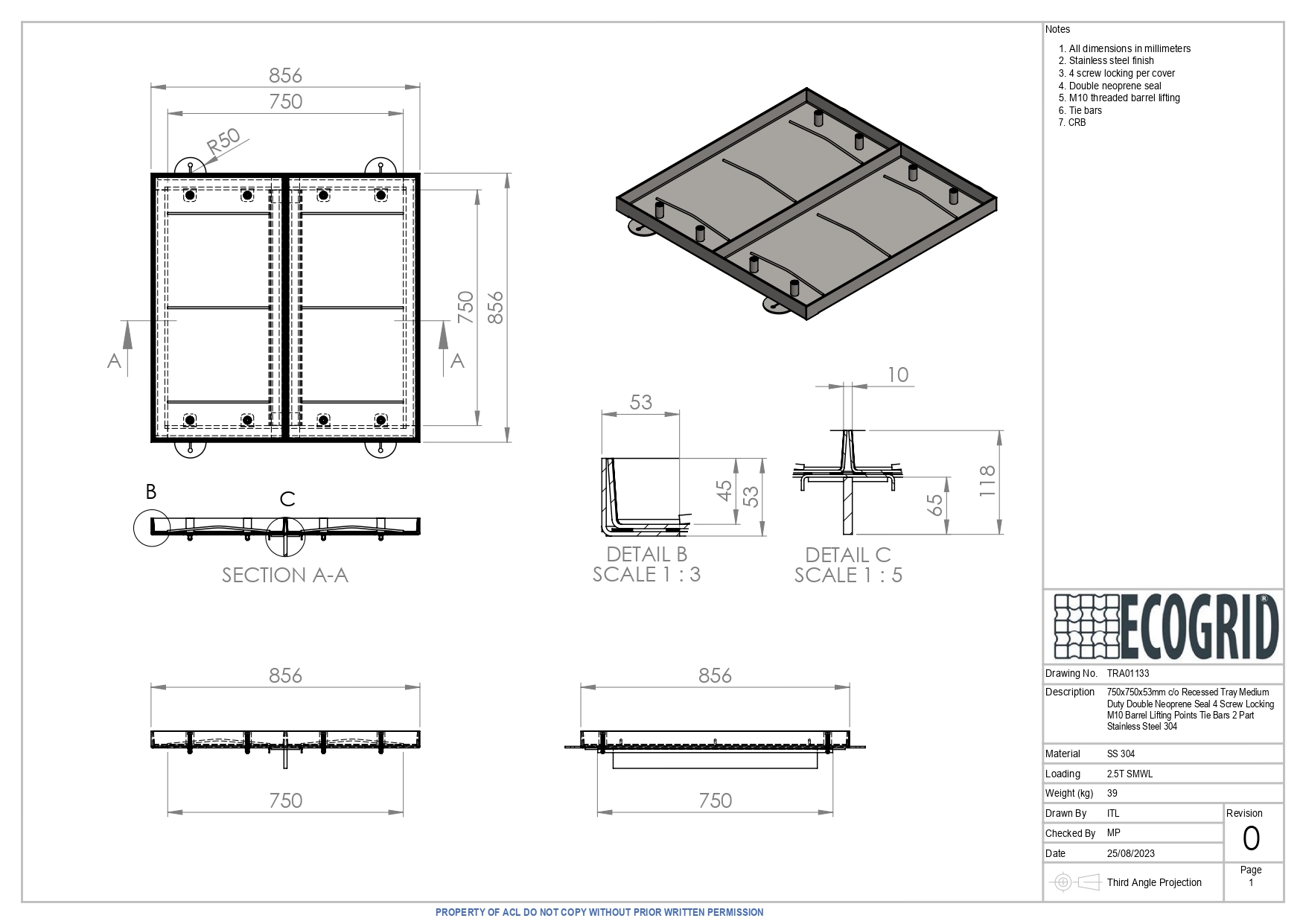

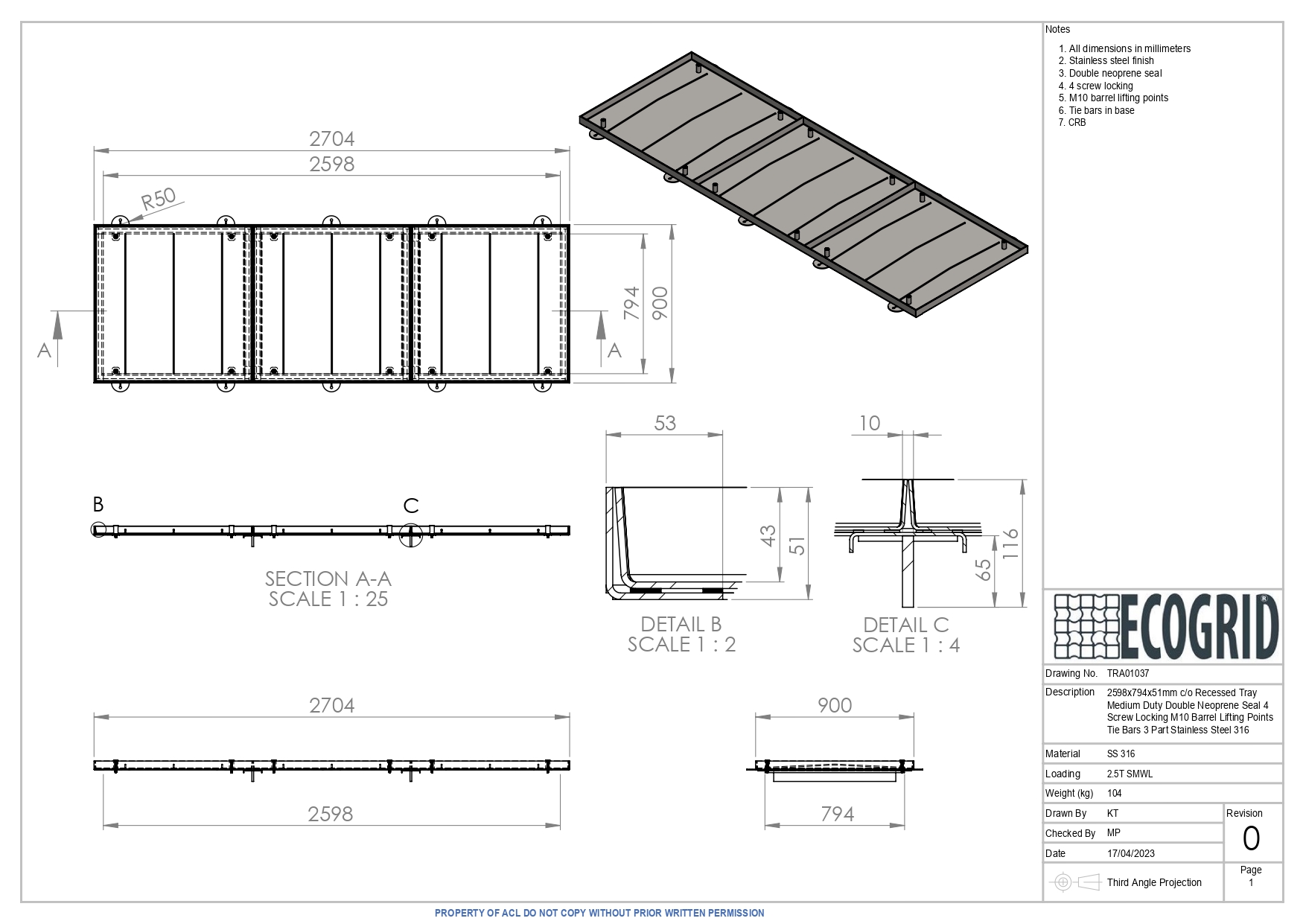

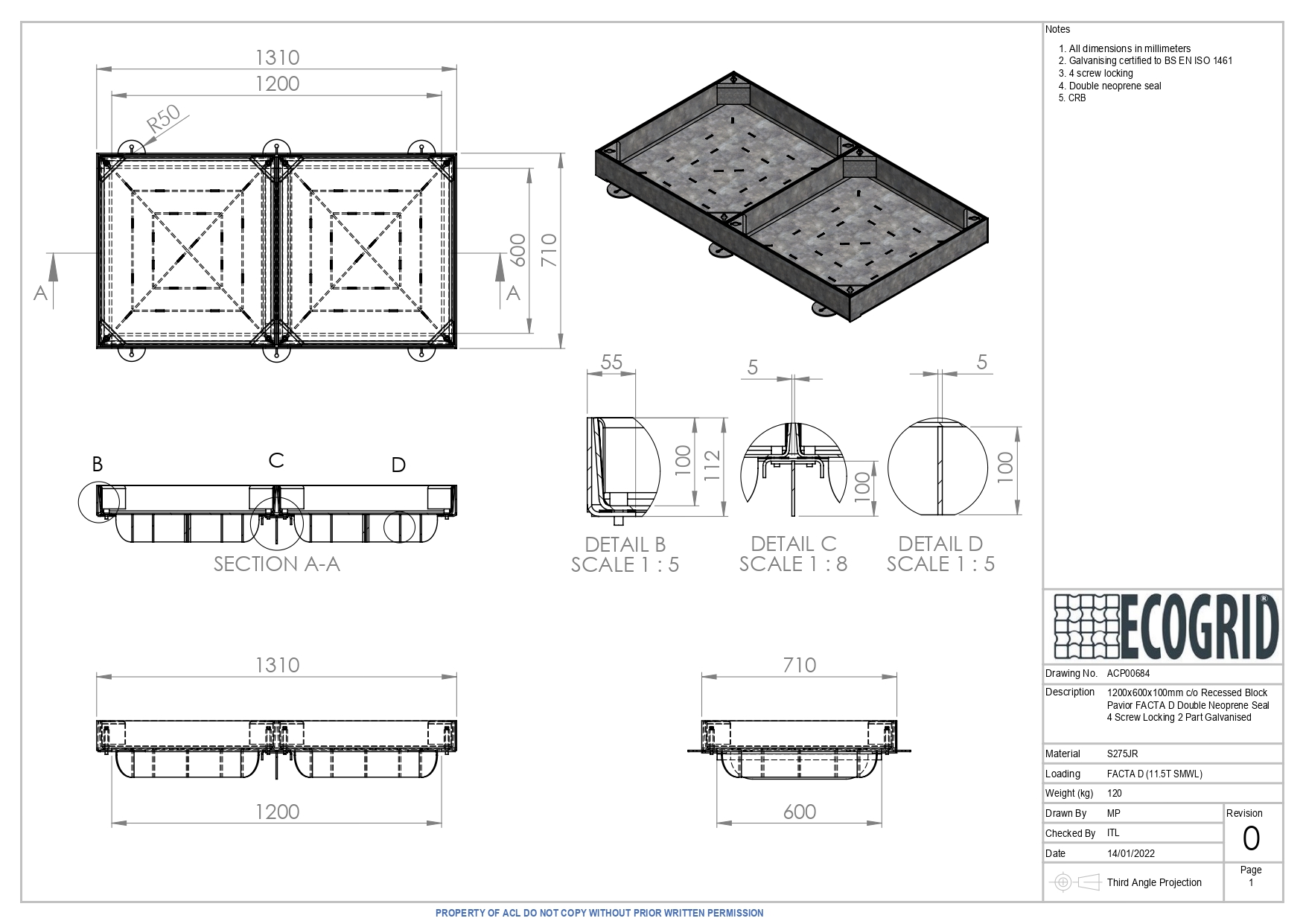

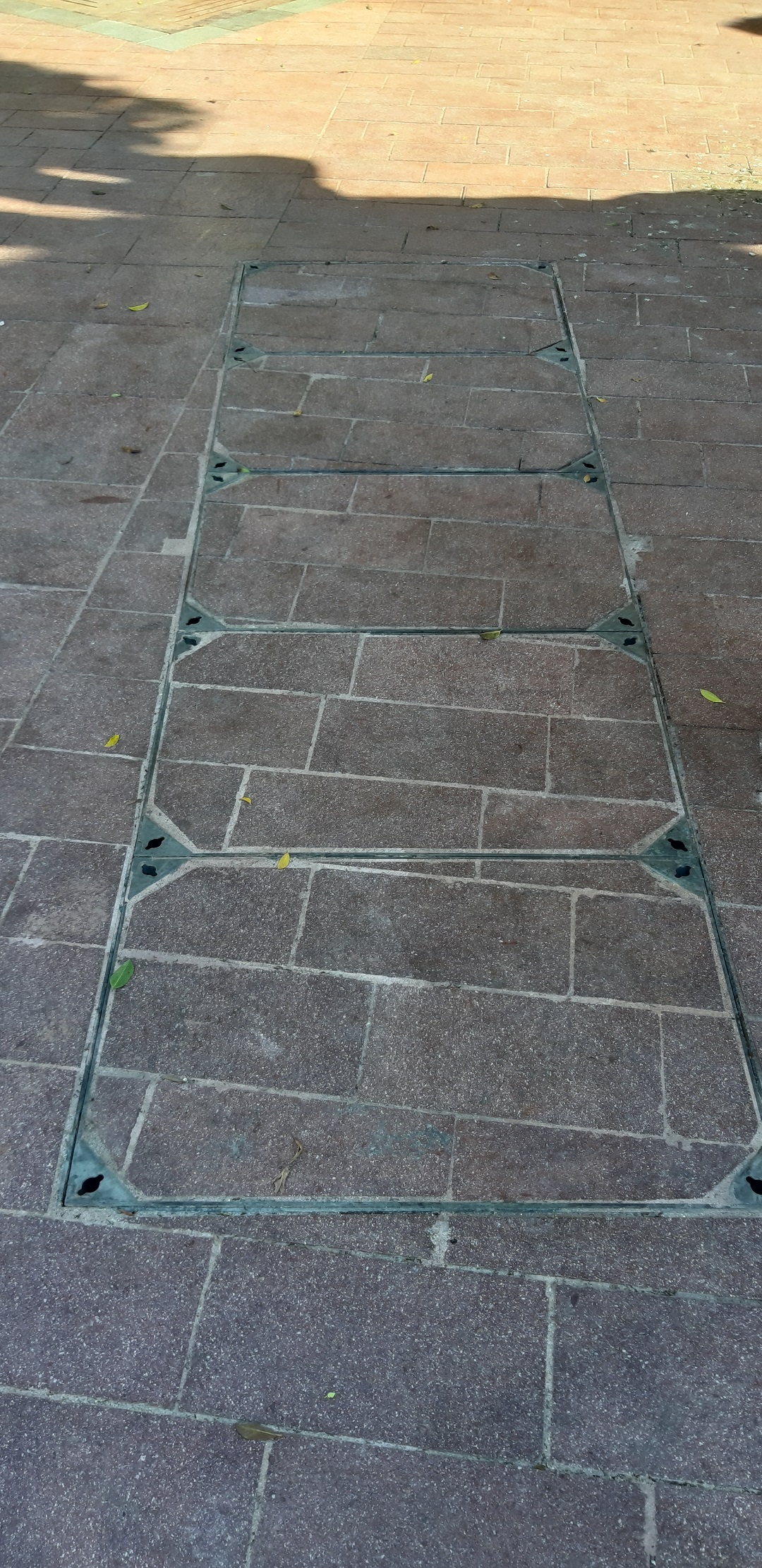

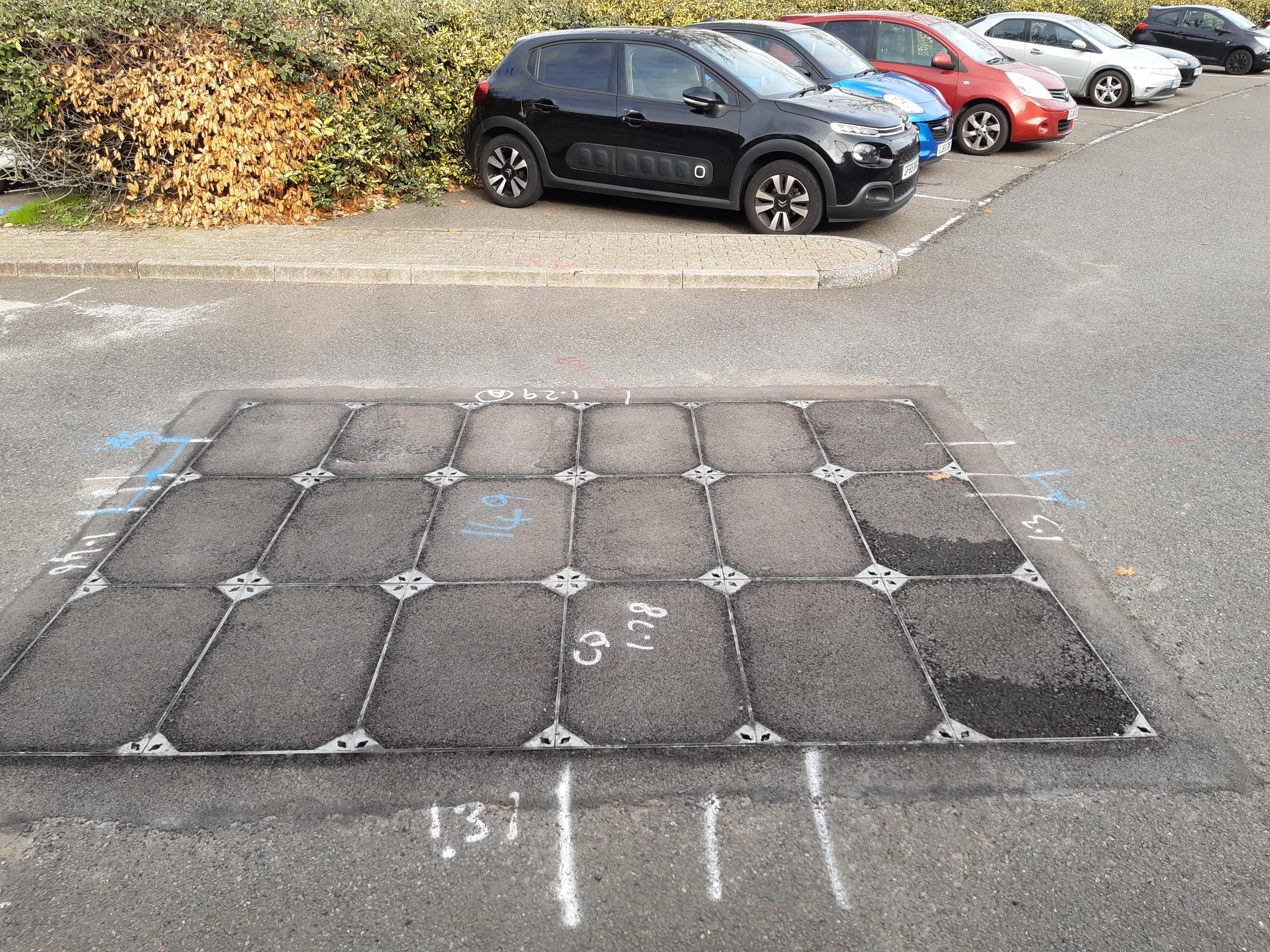

For the larger projects or times when you need access to a larger area below, we offer multi-tray manhole covers.
These are covers with a single frame measuring exactly what you need for your project and featuring multiple smaller access lids and removable support bars.
This makes for a solution where you can access a very large chamber below — 2m×2m+ in size — with no obstructions.
To access these larger chambers you can remove just one of the smaller frames for partial quick access, or remove all the trays and the central support bars for complete unobstructed access to the chamber below.
We have a range of covers that are sealed and locking — a standard feature we offer — but with the addition of a bolted-down surge plate to resist water pushing up from below.
This cover offers additional flood prevention protection while still being a discreet, well-finished recessed manhole cover.

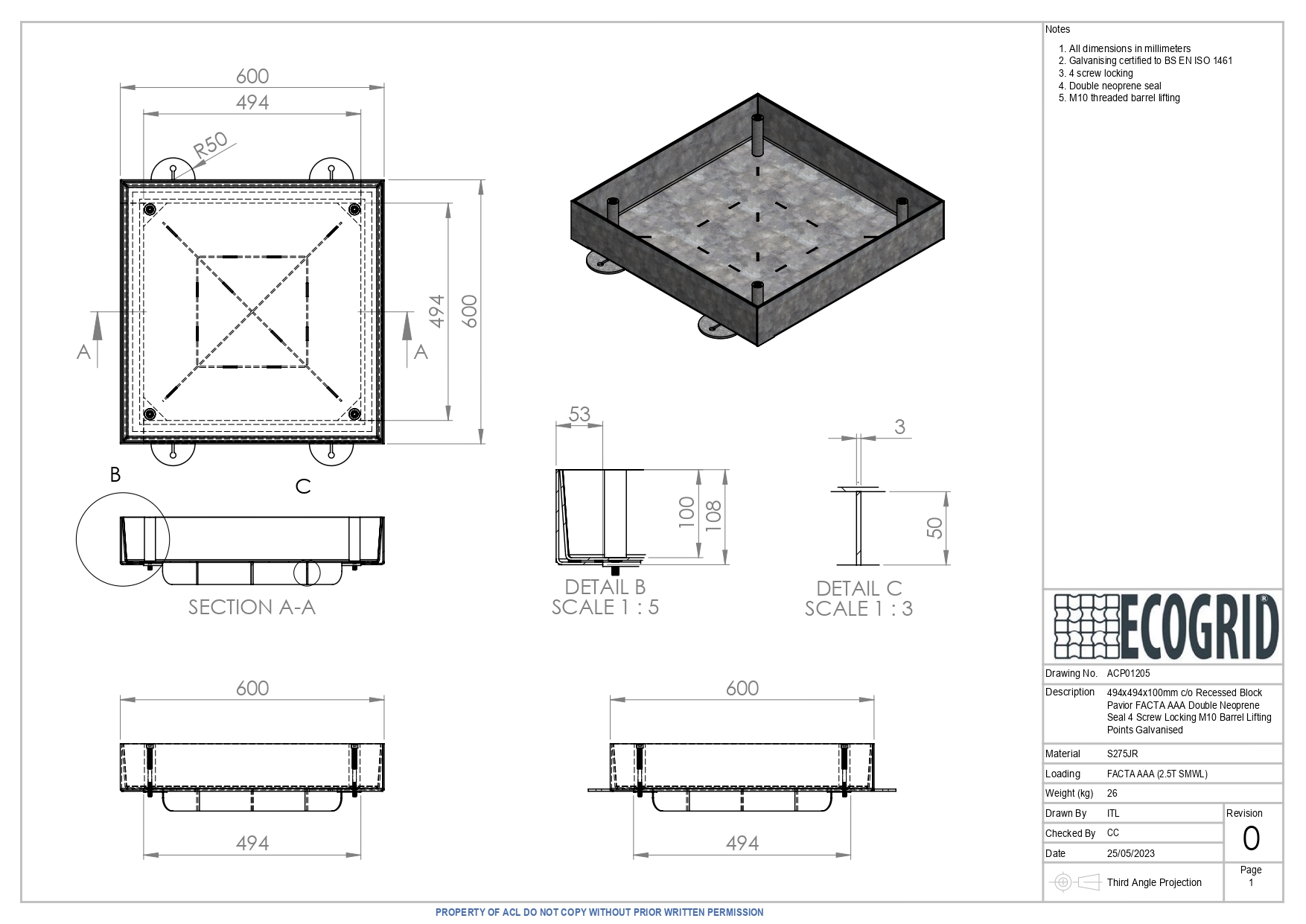

Some projects demand as little as possible to be visible from the surface once the cover is installed. This is where our discrete lifting points come in — they are a simple barrel that comes up from the edges of the cover, meaning no visible corner lifting point.
These tend to be specified on high end decorative patio installs using porcelain or similar finishes. They are also available for block paving and in stainless steel for swimming pool areas.
A nice upgrade from the standard manhole cover key style.
Above are some of the usual bespoke covers we make — but being a completely bespoke service, we can make you anything you need for your project.
Examples:
Every recessed cover we make is built to your exact project requirements. Get in touch with your dimensions and we’ll design a solution around you.
